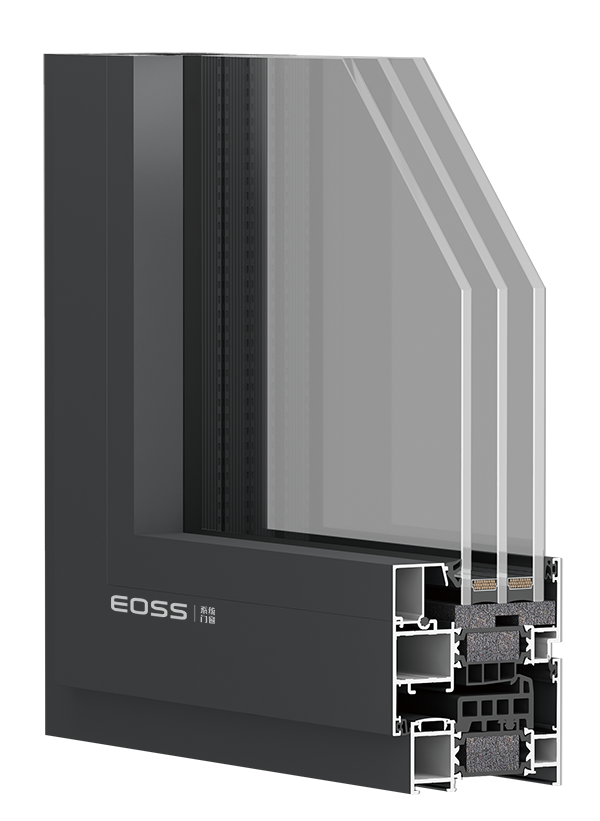

ES76 casement window
◇ Anti theft closed pressure wire
The structural load-bearing wall thickness is ≥ 1.2mm, and a foam sealing strip with a diameter of 4mm is provided.
◇ Glass warm edge spacer strip
Tainuo Wind TGI glass warm edge spacing strip reduces condensation on the glass edge.
◇ Tainuo Wind 39mm shaped insulation strip
Efficiently blocking the conduction of heat on the profile, thus achieving high-quality thermal insulation performance.
◇ Thermal insulation cotton
Equipped with refrigerator grade insulation cotton, the material's heat transfer is ≤ 0.23W/(㎡· K), the insulation performance is improved by 0.2W/(㎡· K), and the sound insulation performance is improved by 3db.
◇ 6060-T66 ultra high precision aluminum material
Selected 6060-T66 ultra high precision aluminum provided by Huajian Aluminum Industry, with higher strength, less deformation, and guaranteed quality.
◇ Ladder style drainage design
The drainage channel is designed from high to low to prevent backflow of accumulated water, with a water tightness performance of ≥ 700Pa.
