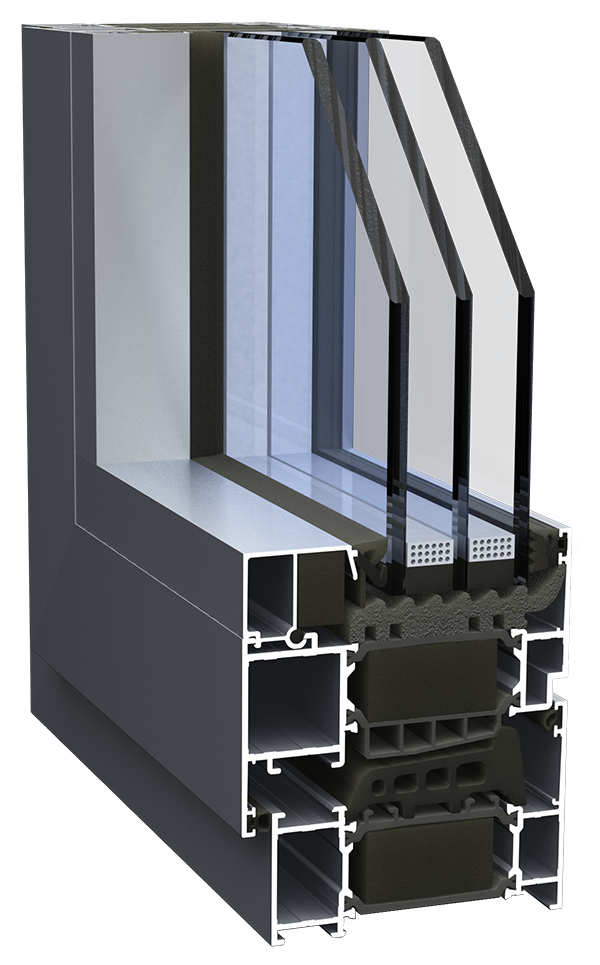

ES91 high-performance passive window
Window System
※ Description
◇ Three glass two cavity low radiation Low-E
High transparency Low-E film, visible light transmittance ≥ 75%, far-infrared emissivity 0.25 to prevent heat loss, UV isolation ≥ 99%.
◇ Soft hard co extruded composite rubber strip
High temperature resistance ≥ 70 ℃, low temperature -40 ° C, service life ≥ 10 years.
◇ Insulated closed cell sponge
High temperature resistance ≥ 70 ℃, low temperature -40 ℃, service life ≥ 10 years.
◇ Tainuo Wind 54mm Insulation Strip
Efficiently blocking the conduction of heat on the profile, thus achieving high-quality thermal insulation performance; UF ≤ 1.4W/(㎡· K), overall Uw value ≤ 1.0W/(㎡· K)
※ Performance Parameter
Heat Preservation
10Level
Soundproof
4Level
Airtight
8Level
Watertight
6Level
Wind Load Resistance
9Level
Anti-Theft Performance
Level
※ Product Features
